2* Roll up motor
2* The creeper (accessory of motor)
1* Joint box(transformer+controller)
1* Power Cable(1m)
1* Temperature NTC probe(5m)
1* Raindrop sensor(5m)
The electric roll-up motor for greenhouse is widely used in Greenhouse. With temperature function controller to control 24V motor for forward , reverse and stop.
For controlling the electric roll-up motor for ventilation, which is used extensively in greenhouse.

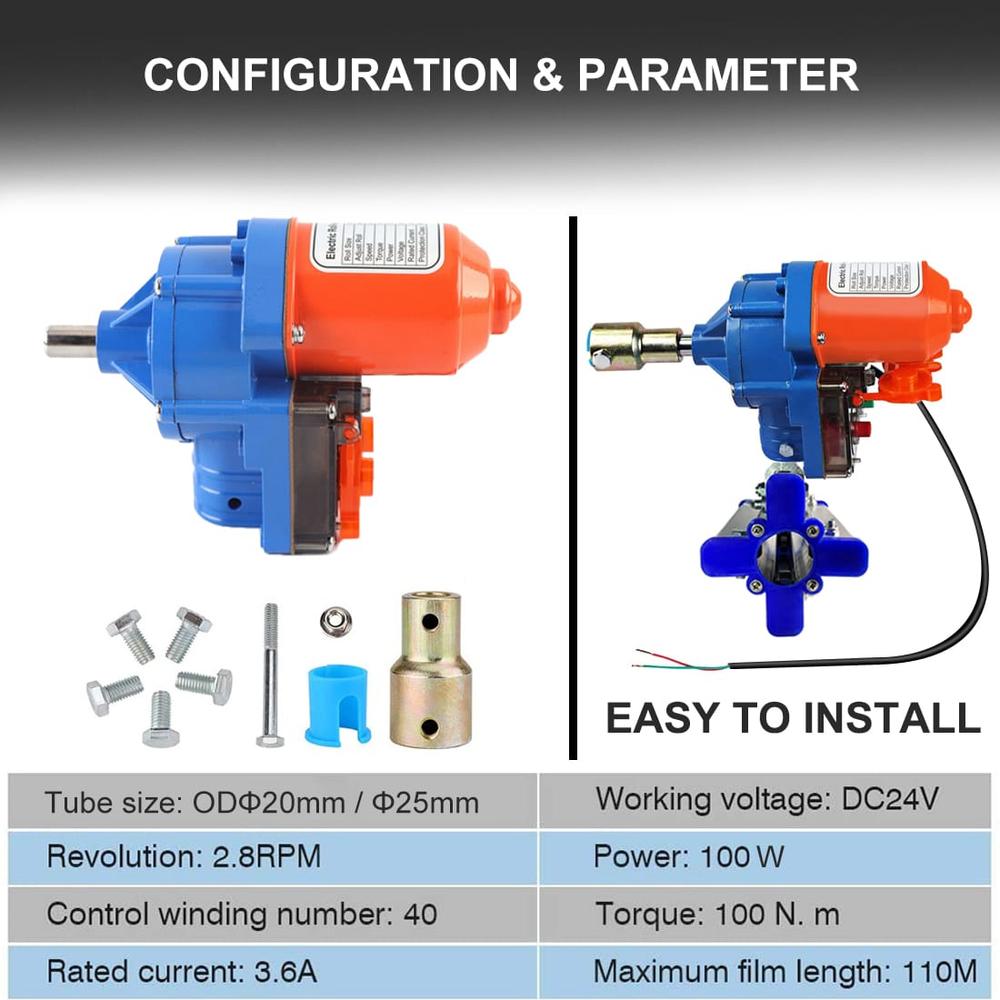

● Roll up motor
1. IP 66 waterproof protection class.
2. Compact size and low noise, easy installation.
3. Can be installed on the top of the greenhouse, and side of the greenhouse(needs creeper).
4. Roll up film tube length up to 360ft ; And 10ft height when OD20mm(Outside Diameter) tube,12.9ft height when OD25mm tube.
5. Setting the limit switches on hoop house roll up ventilation motors.
Power: 100 watt
Travel Limit: 40 loops
Voltage: DC 24v
Rated Current: 4.0A
How to install:
1. Tighten the roll tube with the product by bolts
2. Fix the film on the film tube through the solid film clamp, keeping the film tube in line with the output shaft of the product.
3. After fixing and starting the winder power supply, the film can be opened and closed.
The coiled tube used in this product has 2 specifications, OD20mm, OD25mm:
1. When using OD20mm pipe , it should be used with ‘opening sleeve’.
2. The OD25mm pipe can be directly inserted into the ‘connection sleeve’.
It’s recommended 16AWG cord if within 164ft(50m) from the motors to controller or power.
● Thermostat controls for greenhouse roll up motors
Voltage: AC110V ~AC 220V to DC24V
Input: 110vac and 220vac
Control: Forward(up)/ Reverse(down)
Modes: Auto / Manual
Switch Style: Buttons
The Loads Application: Motor, Linear actuators, etc.
Probe work precision
Temperature unit: Celsius
Temperature range: -9~70°C
Control precision: ±1°C
Probe parameter: 25°C/10K B=3435
Use environment: 1~65°C Humidity: <85%RH
Temperature probe length: 5m
Raindrop sensor length: 5m
1.Professional construction workers or electricians are required to operate, to avoid safety accidents due to electric shock.
2.The motor with limit switch would stop once hitting the limit, the controller has limit time for assisting, too.
3.The product is without timer control, only temperature control.
4.Please install it inside the house.
