Useful in Your Greenhouse

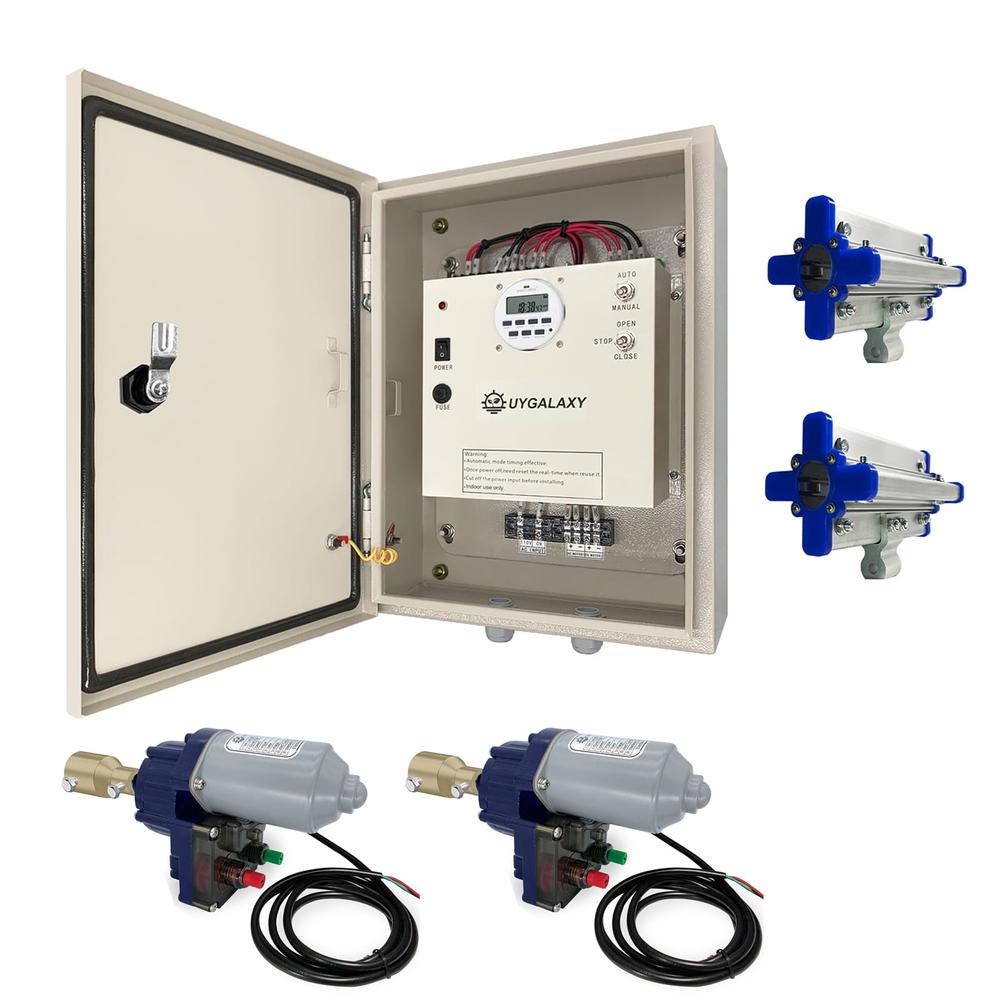

1* Electric Box(Transformer+Timer Controller)
2* Roll Up Motors
The electric roll-up motor for ventilation, which is used extensively in the greenhouse.
Such as the solar greenhouse, vegetable greenhouse, cultivation greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the roll of film.
Controller for Roll Up Motor
Drive: 2 channel of DC 24V
Swith2: Open/Stop/Close Window
Fuse: 10A (Press to reset)
Roll Up Motor
1. IP 66 waterproof protection class.
2. Compact size and low noise, easy installation.

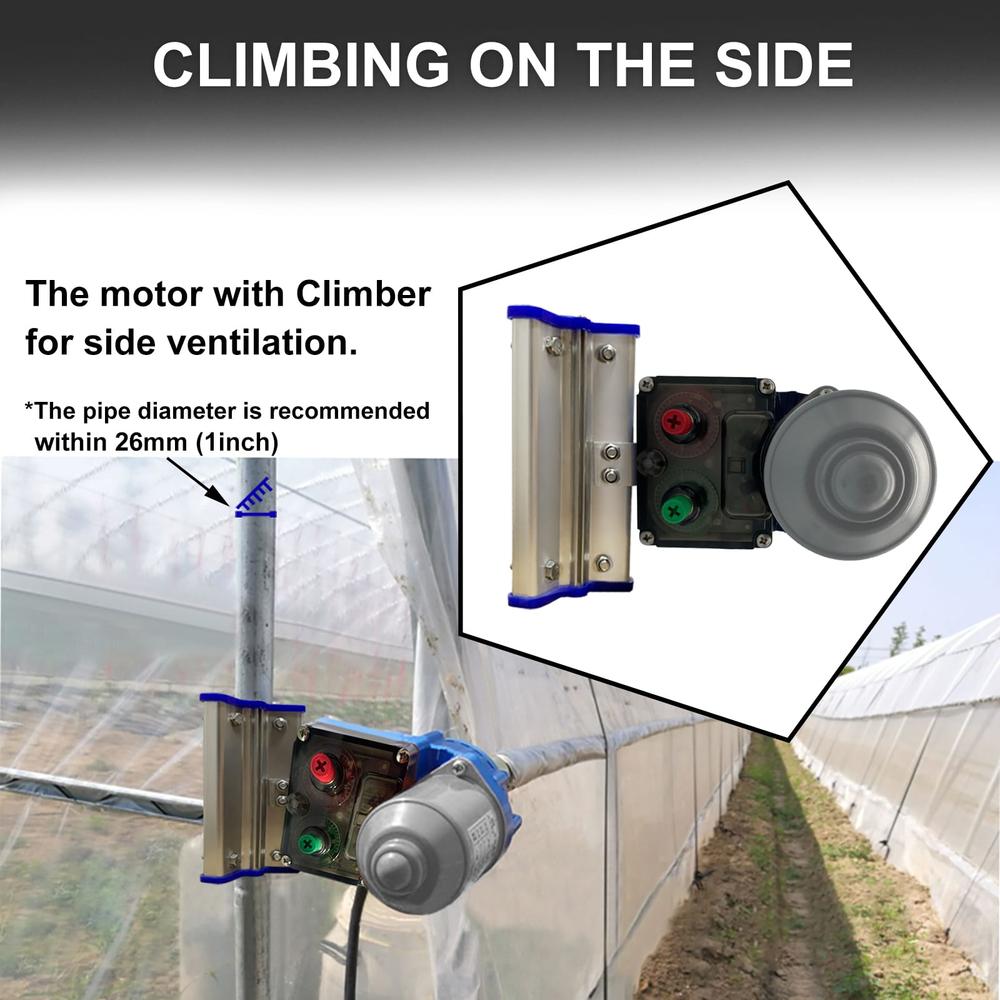

3. Can be installed on the side of the roll, also can top roll.
4. Roll up film tube length up to 360ft ; And 19ft height when OD 1 3/8inch (Outside Diameter 34.9mm) roll up tube
5. Setting the limit switches on hoop house roll up ventilation motors.
Roll tube length: 360ft(110 m)
Power: 100 watt
Adjust Roll: 40r
Voltage: DC 24v
Speed: 2.8rpm(3.5rpm when no load)
Rated Current: 4.0A
Torque: 80 N.m
Protection Class: IP66
Maximum film length: 360ft
Color: Grey and Bule
Tip:1. After the installation of the roll up motor, be sure to adjust the roll up bar in a straight line.
2. It’s suggested to use 16 AWG wire for motors when the wire is within 165ft (50 m), the extension wire is not included.
3. The galvanized tube used for roll bar can be NPS 1inch, DN25 or 1-3/8inch top rail.
