UYGALAXY Greenhouse Roll Up Motor Temperature Controller for Venting with AC110V~220V to DC24V Transformer Relay Module Thermostat Controller & Forward Reverse Control 2 Motors


  • [ For Motors ] Perfect for driving 1~2 packs roll up motors (≤ 100W 24V) at the same time.
  • [ Thermostat ] Microcomputer controlled, easy to set up open and close curtain temperature.
  • [ All-In-Control ] One button to open the dehumidity mode in the morning, it will go to auto mode then.
  • [ Warranty ] 1 year, technical support team is pleased to be at your service.
  • [ Voltage ] Global single phase power from 100V to 240V, please contact us if any question, email: uygalaxy@rollupmotor.com
SKU: UYG2304WKKZQ-1 Categories: , Tag:

The package included:
1* Roll up motor thermostat controller
1* Power Cable(1m)
1* Temperature NTC probe(5m)
1* Raindrop sensor(5m)
1* Manual

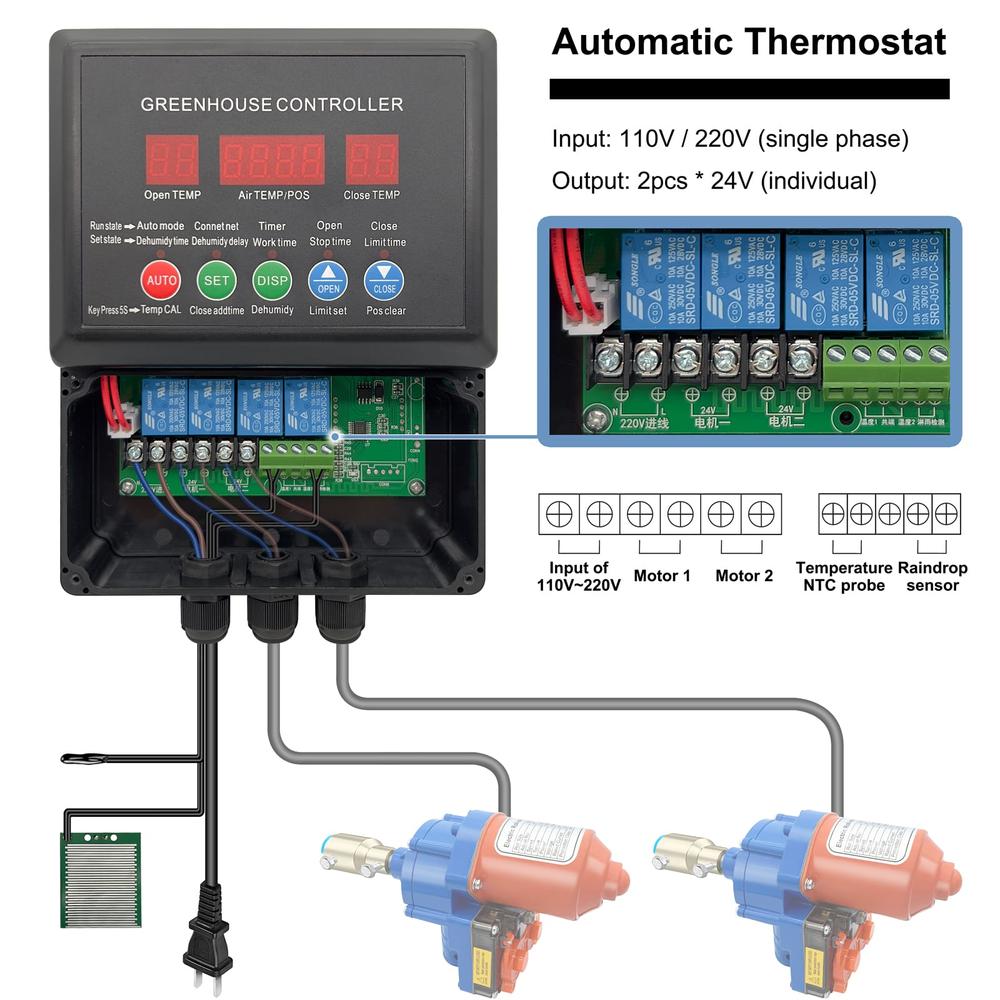

Controls for greenhouse roll up motors

Voltage: AC110V ~AC 220V to DC24V
Input: 110vac and 220vac
Output1: 24vdc
Output2: 24vdc
Control: Forward(up)/ Reverse(down)
Color: Black

Modes: Auto / Manual
Switch Style: Buttons
The Loads Application: Motor, Linear actuators, etc.

Probe work precision

Temperature unit: Celsius
Temperature range: -9~70°C
Control range:-7~50°C
Control precision: ±1°C
Probe parameter: 25°C/10K  B=3435
Use environment: 1~65°C   Humidity: <85%RH
Temperature probe length: 5m
Raindrop sensor length: 5m

1.Professional construction workers or electricians are required to operate, to avoid safety accidents due to electric shock.
2.The motor with limit switch would stop once hitting the limit, the controller has limit time for assisting, too.
3.The product is without timer control, only temperature control.
4.Please install it inside the house.
5.Thank you.

Weight0.9 kg
Dimensions21 × 14 × 5.5 cm



It’s the reliable and valuable brand of the roll up motor, in the most popular online shop,like amazon. It’s started from scratch by getting familiar with farmer and know what they do, what they care.The main scope of UYGALAXY is based on the motor drived items for rolling, like roll up motor for film and tarp etc, on vegetable, fruit, flower, poultry, livestock, cannabis cultivating greenhouse. Also the door roll up motor, the home curtain roller, and linear actuators.Your satisfaction and convenience is the key to lead UYGALAXY to go further, as a customer-centric retailer and wholesaler and exporter.
