Useful in Your Greenhouse

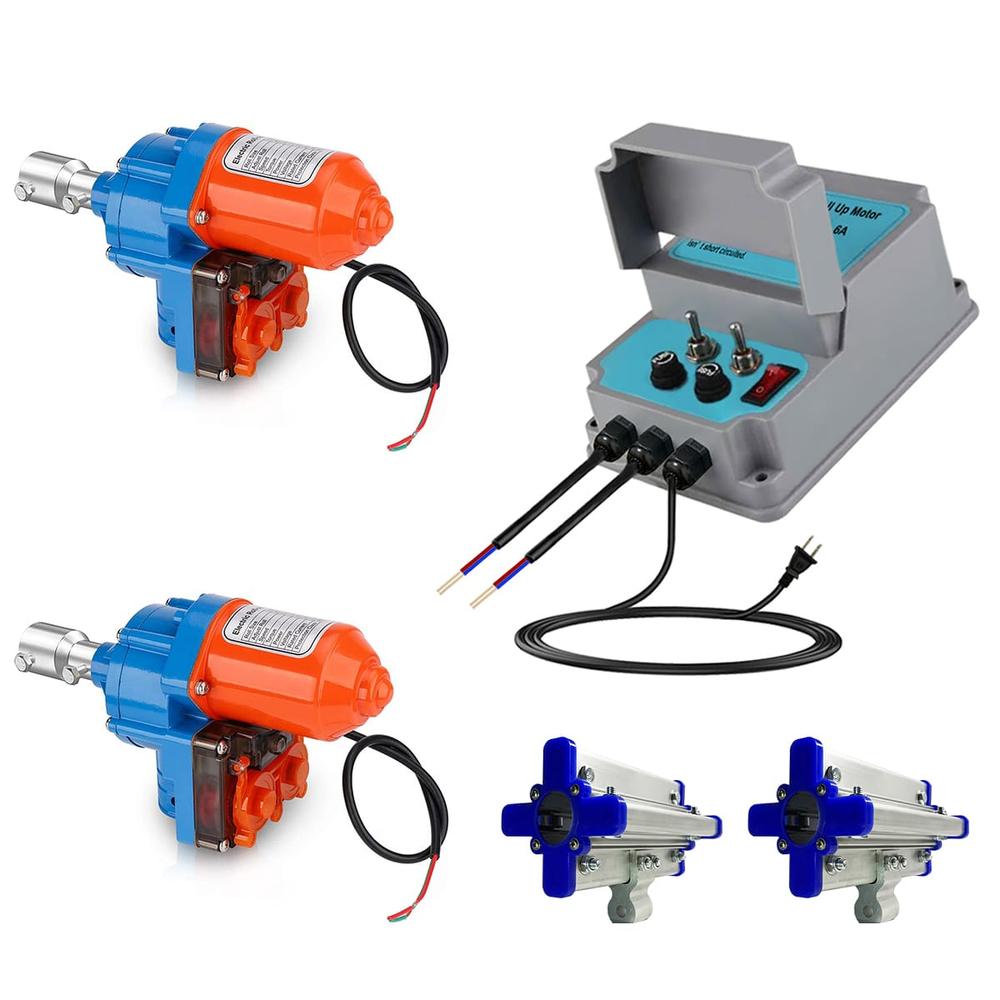

1* Joint Box(transformer+Controller)
2* Roll Up Motors
The electric roll-up motor for ventilation, which is used extensively in the greenhouse.
Such as the solar greenhouse, vegetable greenhouse, cultivation greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the roll of film.
Controller for Roll Up Motor
Drive: 2 channel of DC 24V
Roll Up Motor
1. IP 66 waterproof protection class.
2. Compact size and low noise, easy installation.
3. Can side of the roll, also can top roll.
4. Roll up tube length from 5~360ft, climb 10ft height when (Outside Diameter)OD 20mm roll tube(DN15), 12.9ft height when OD 25mm roll tube(DN20).
5. Setting the limit switches on hoop house roll up ventilation motors.
Roll up motor and climber work perfectly together
Roll tube length: 360ft(110 m)
Power: 100 watt
Adjust Roll: 40r
Voltage: DC 24v
Rated Current: 3.6A
Torque: 100 N.m
Protection Class: IP66
Maximum film length: 360ft
Tip:1. After the installation of the roll up motor, be sure to cover the waterproof cover to prevent water.
2. It’s suggested to use 16 AWG wire for motors when the wire is within 165ft (50 m), the extension wire is not included.
3. It’s recommended to use OD 25mm telescopic pipe for fastening the bottom of the roll up motor.
