UYGALAXY Micro Linear Actuator for up and down, which is used for your home, such as home automation, cabinet door, drawer, shutter.
And also used for your DIY project, such as robot arms, toys, cosplay.
Great for electric open chicken coop/pigeon/rabbit cage/pet nest door.
Input Voltage: DC 12V
Working current: 0.2A

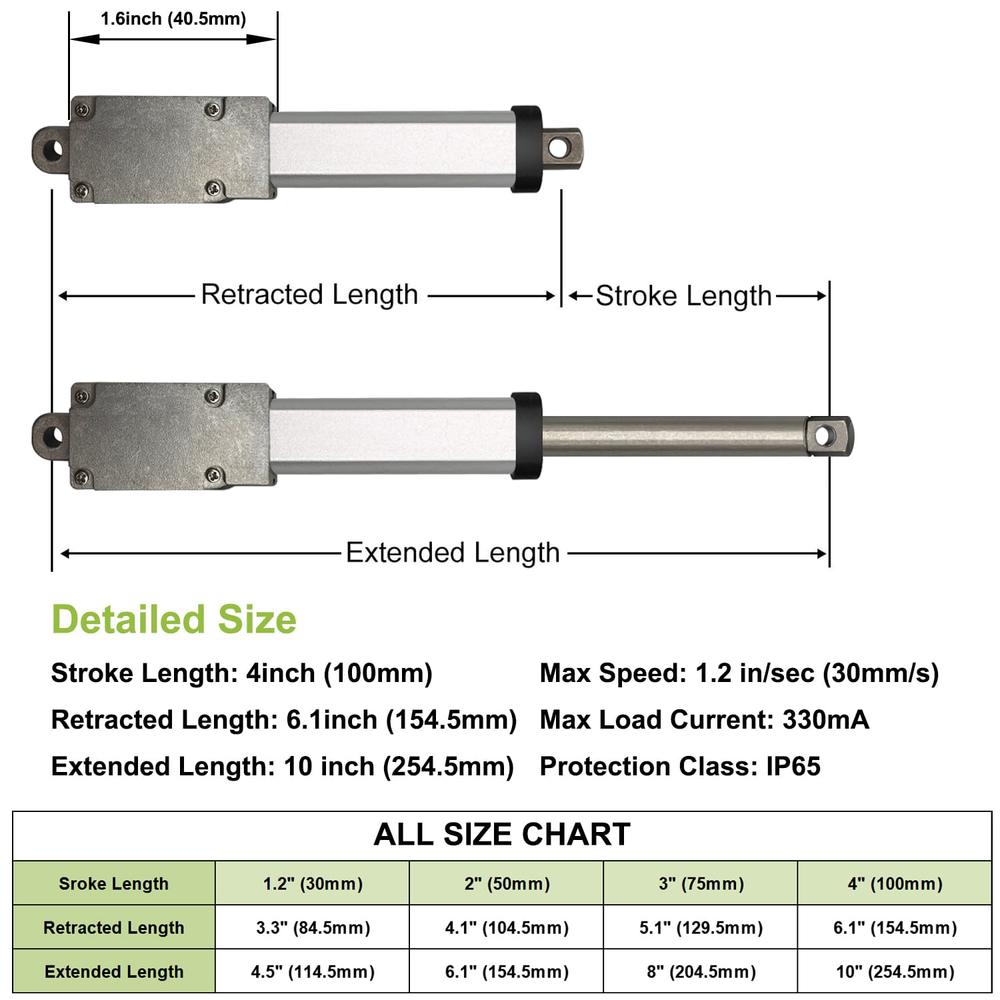

Stroke Length: 4in/100mm
Retracted Length = 154.5 mm(6.1 ”)
Extended Length = 254.5 mm( 10.1”)
Material: Aluminum alloy
Load capacity: 7.2lb/32N
Waterproof Protection: IP65
Duty cycle: 10%
Working Temperature: -13℉~+140℉
Low noise design, noise level less than 50dB.
Compact size and lightweight, easy to install with mounting bracket.
Built-in limit switch that it will turn off power when the device reaches the end of stroke to protect motor. It will hold its position when the power is off.
Made of high quality aluminum, more safe & well constructed for long-term use.
How to protect your actuator?
The actual load does not exceed the rated load. Please use the 12V DC power battery. If use smaller voltage, product can not work well, use bigger voltage maybe will damage to the product.
It should be noted that the mini linear actuator is in extreme operating conditions for a long time will reduce product life.
Please don’t store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.
When soldering is required on the positive and negative power supply’s motor terminals, the soldering iron temperature is 340°C±40°C. Within 3 seconds of heating time.

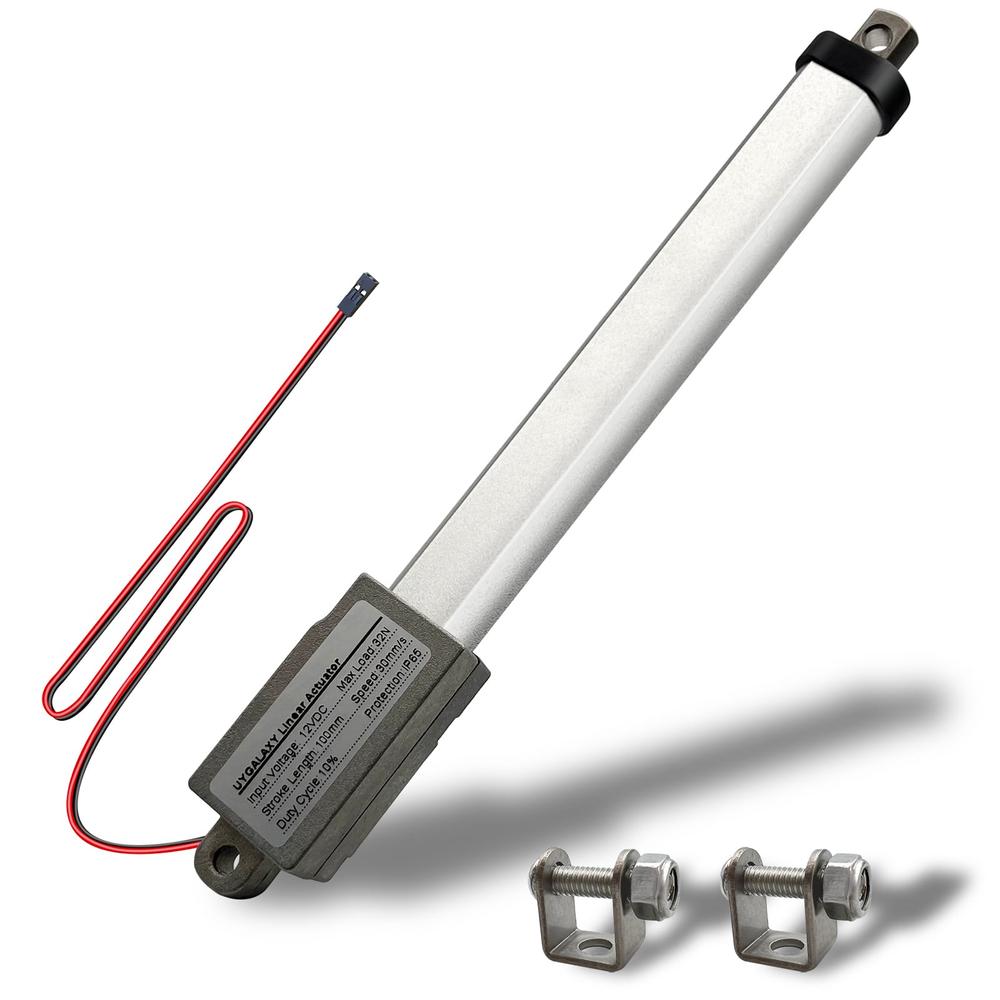

1 x Mini Linear Actuator
2 x Mounting Brackets
