UYGALAXY Linear Actuator Controller DC Motor 12V Momentary Switch Forward/Reverse with Wireless Remote Control DPDT Relay for Motors


  • 🕹️Design for 12V DC motor, like linear actuators, 12V 5A power supply is suggested.
  • 🕹️Momentary switch forward(clockwise) and reverse(Counterclockwise) the motor, means motor stops when release the button.
  • 🕹️RF 433.92 Mhz remote control within 50ft distance.

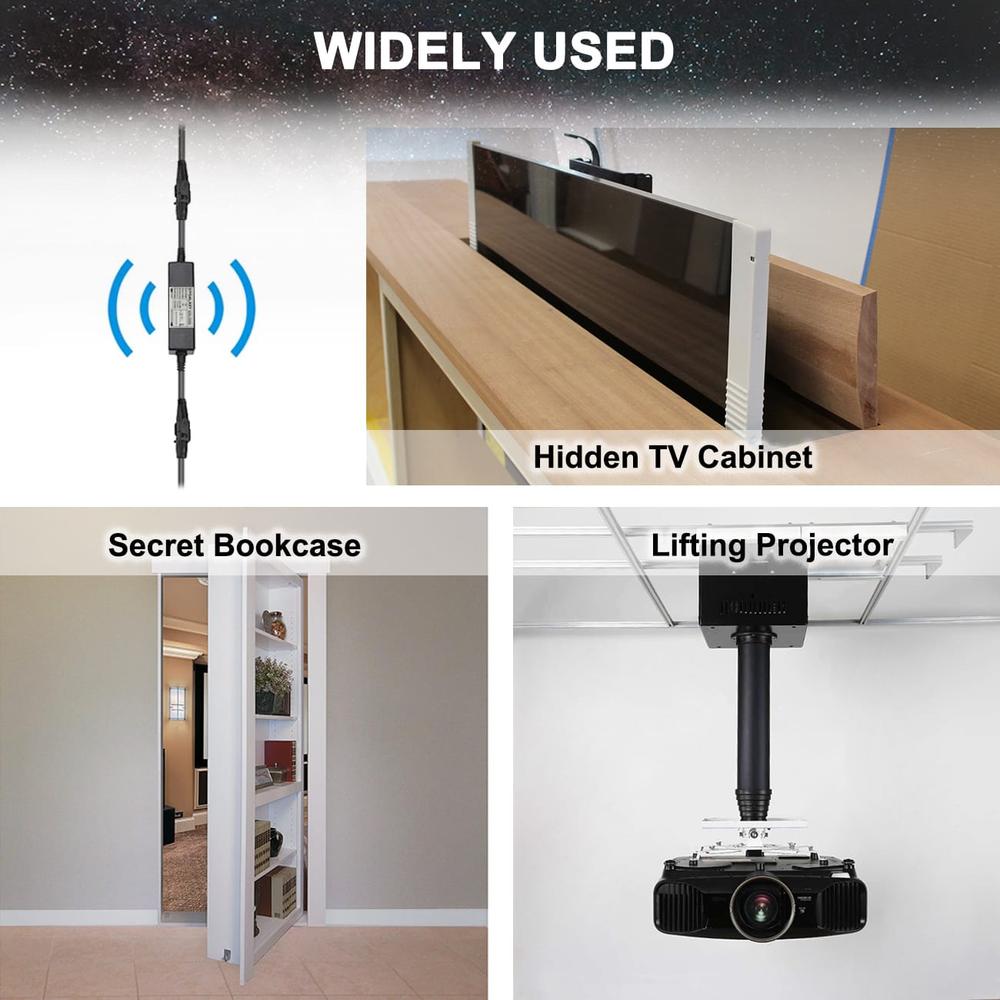

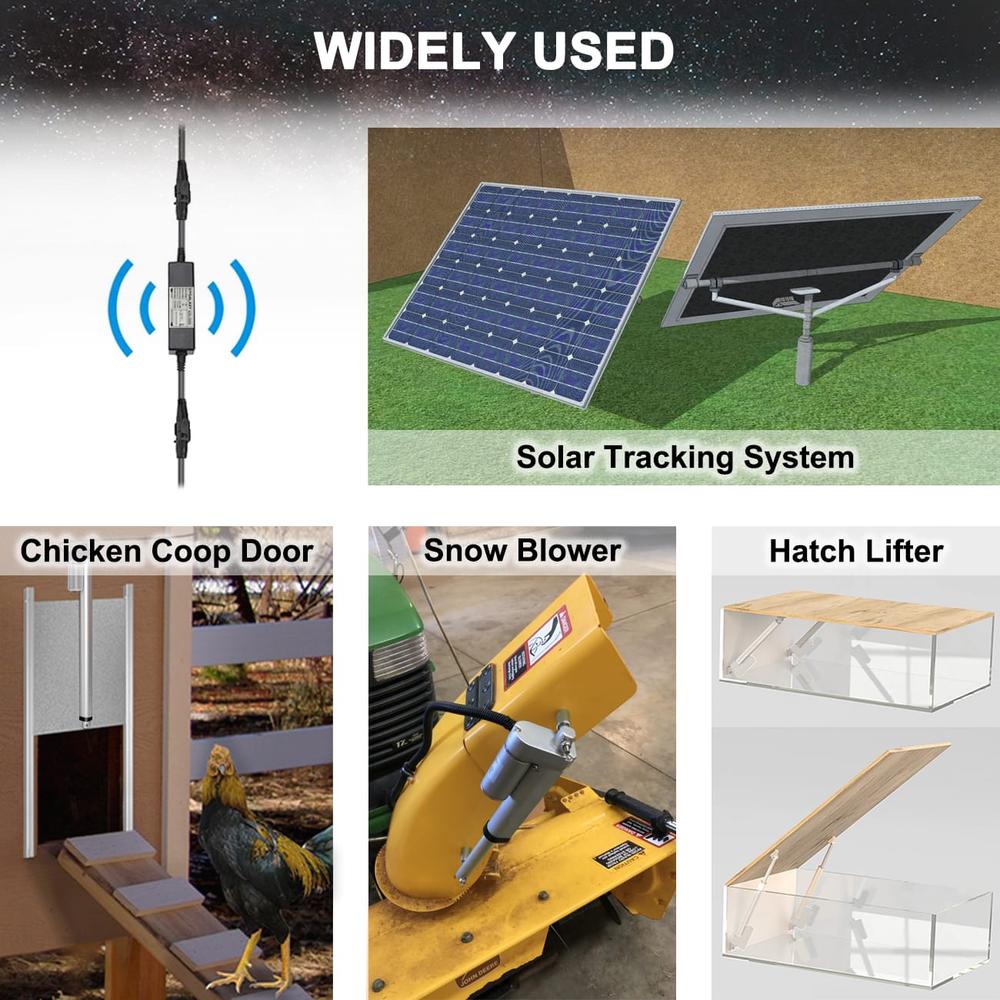

  • 🕹️Widely used in home furniture, hospital & healthcare fields, such as open doors, lift tables, raise flat screens, adjust recliners for the headset, footrests, relaxation beds.
  • 🕹️Package included: 1or 2 Remote controllers + 1 Receiver + 2 Extension Wires(2.6ft long) + 1 User Manual (LINEAR ACTUATOR NOT INCLUDED)

Input Voltage:12V
Output Voltage:12V

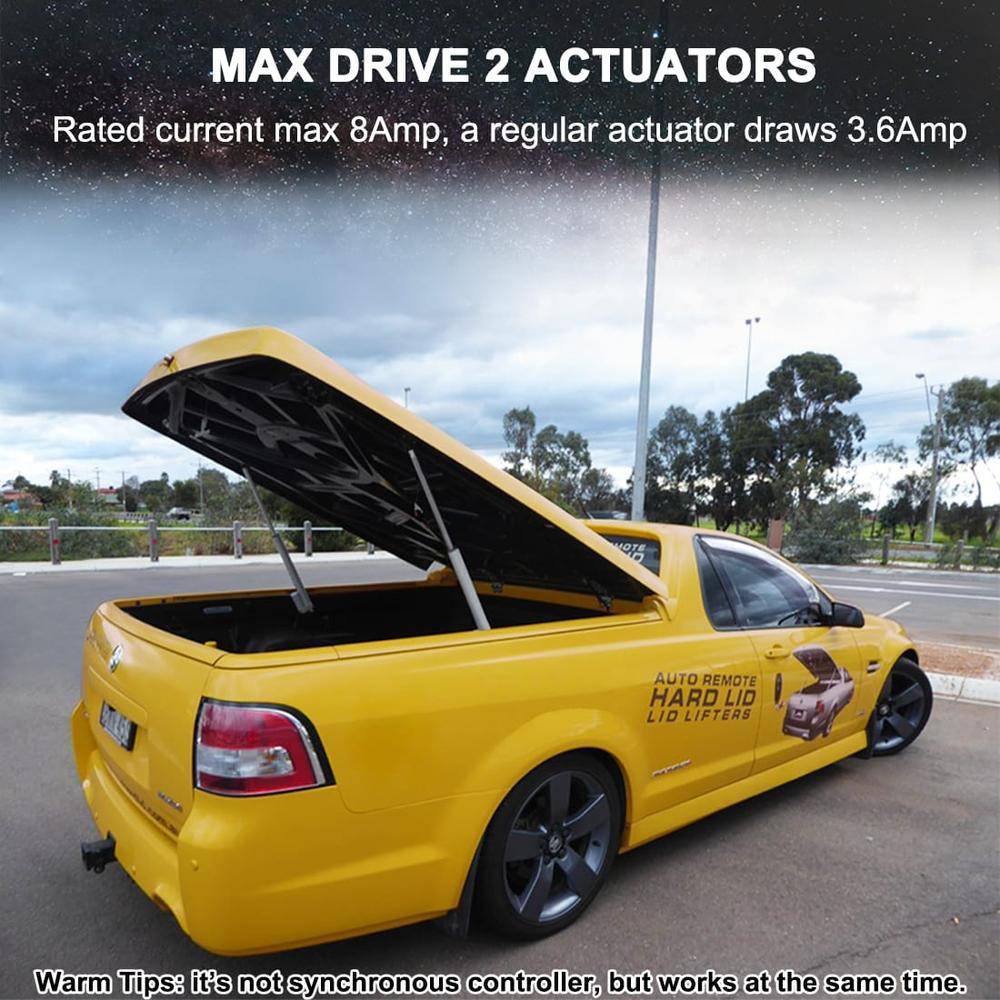

Max Current: 8Amps
Remote Control Distance: Within 50ft (Rated 65ft if no barrier)
Control Method: Momentary switch

Specific functions are described below:

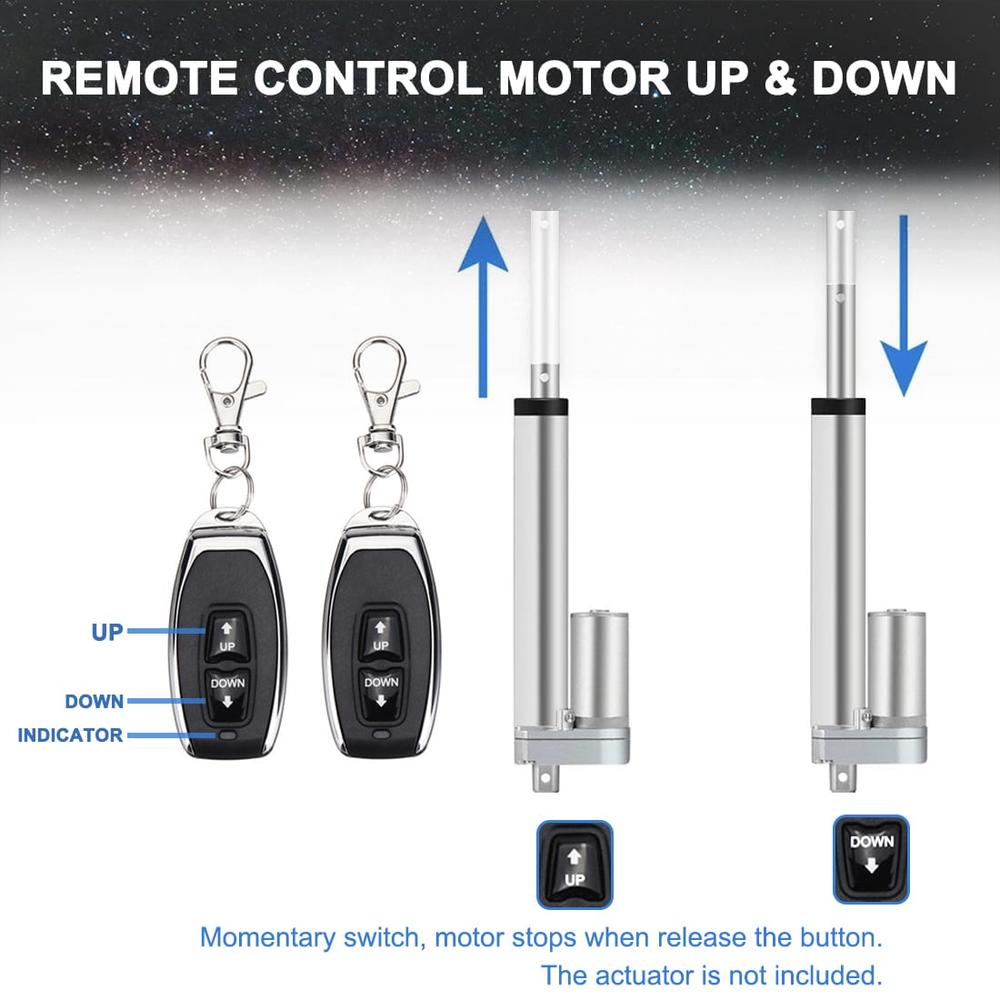

1.Keys [UP] control motor forward(clockwise) turn: When you press UP, the motor action by coronation, stop when you loosen.
2.Keys [DOWN] control motor reverse(counterclockwise) turn : When you press down, the motor action by reversal, stop when loosen.

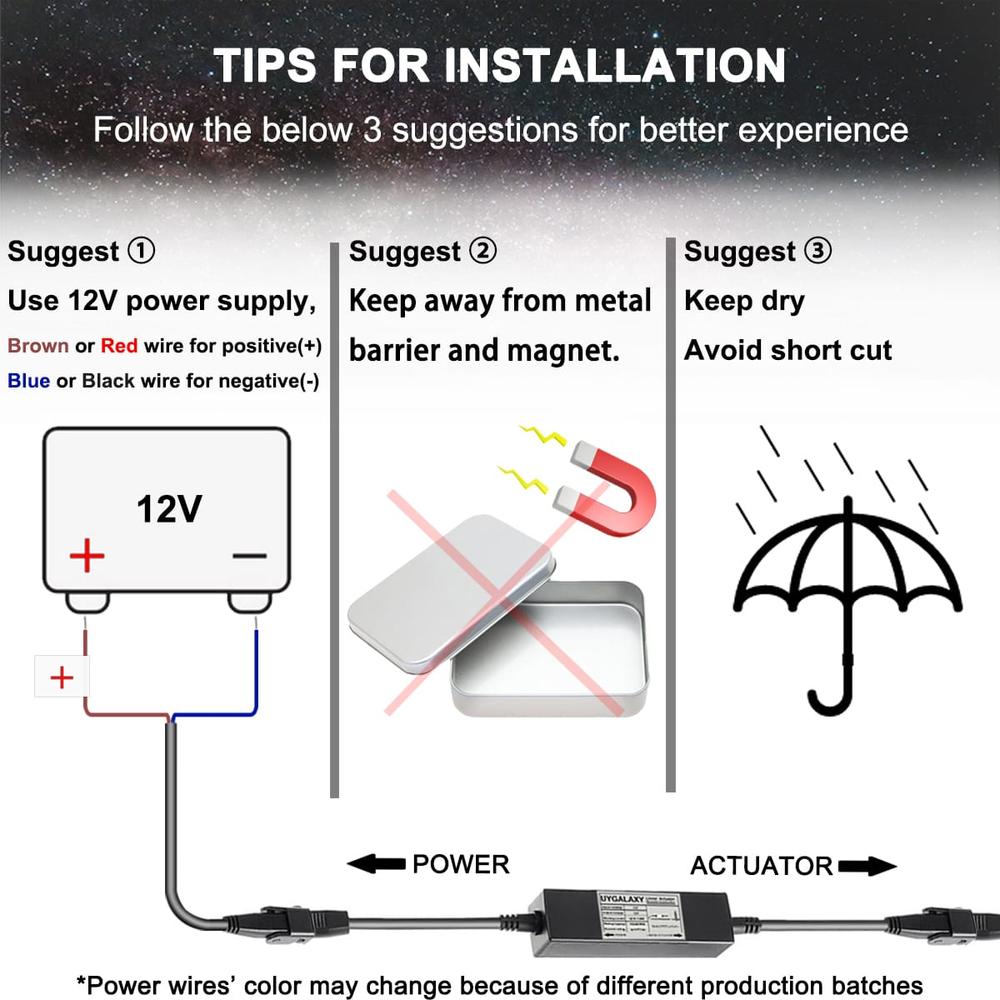

1.The input/output voltage and operating current should be 12volt.
2.The controller is not weatherproof, please keep it from water and direct sunlight.
3.Avoid to press the UP and DOWN in a short time.
4.It needs to replace the battery (2pc CR2016) inside the remote controller when the remote control distance is shorter than before.

Package Included:
·1Pc Wireless Remote Control Receiver
·1 or 2pc Wireless Remote Controller(battery included)

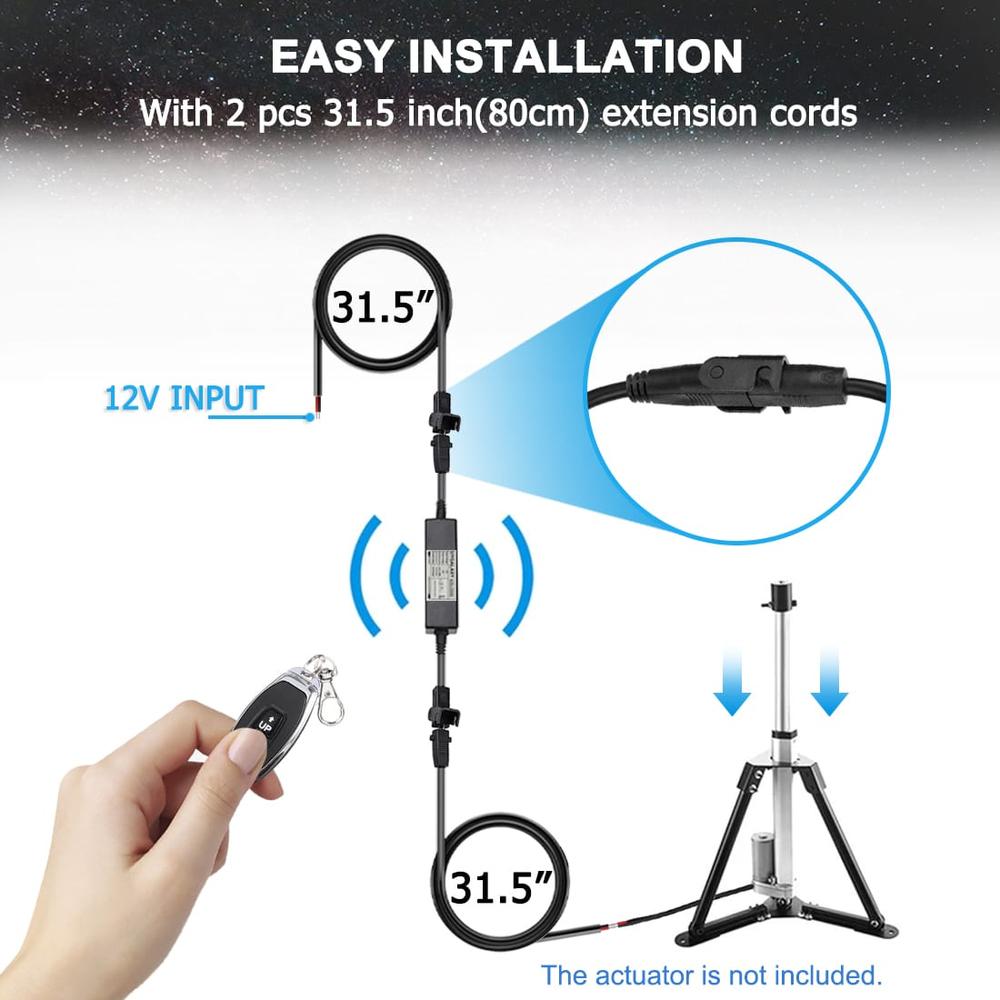

·2Pcs extension cords (31.5inch each)
(Manual & gift in the box)

Weight0.45 kg
Dimensions15 × 15 × 5 cm
Key Fob

1 key, 2 keys



It’s the reliable and valuable brand of the roll up motor, in the most popular online shop,like amazon. It’s started from scratch by getting familiar with farmer and know what they do, what they care.The main scope of UYGALAXY is based on the motor drived items for rolling, like roll up motor for film and tarp etc, on vegetable, fruit, flower, poultry, livestock, cannabis cultivating greenhouse. Also the door roll up motor, the home curtain roller, and linear actuators.Your satisfaction and convenience is the key to lead UYGALAXY to go further, as a customer-centric retailer and wholesaler and exporter.
