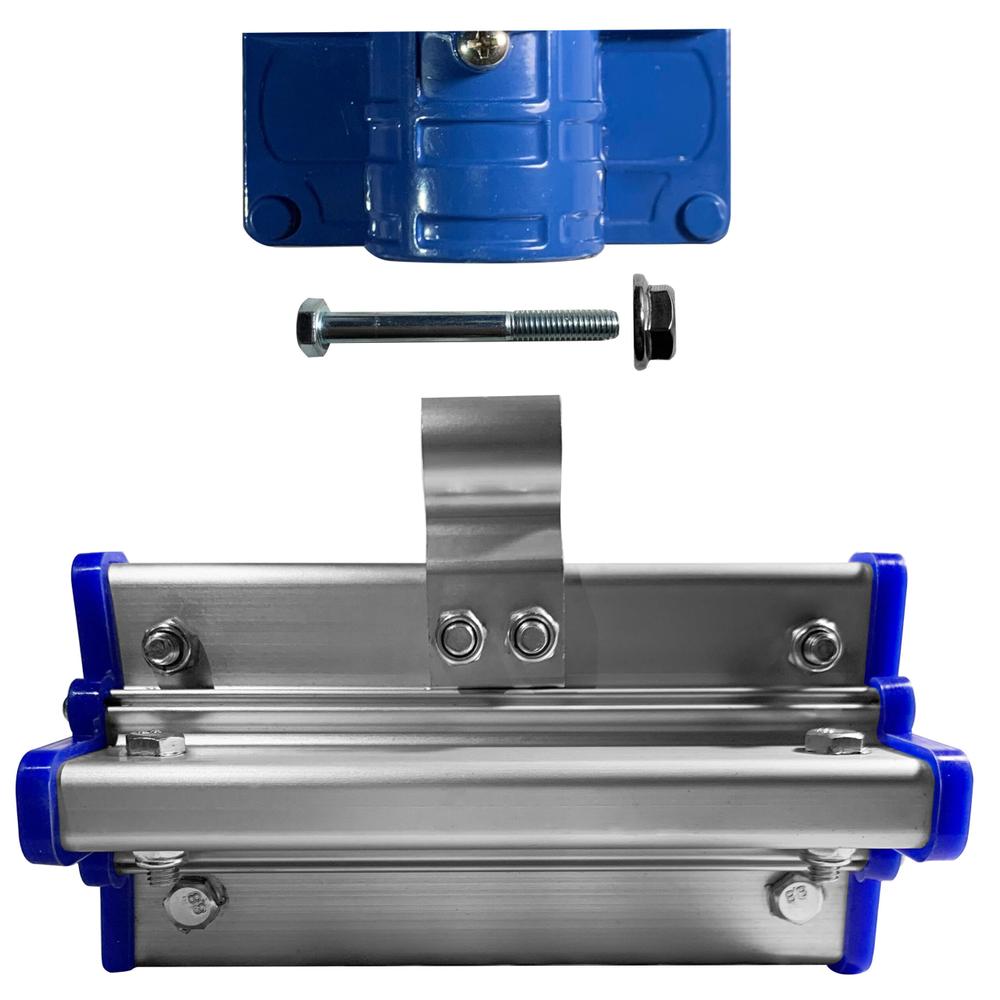

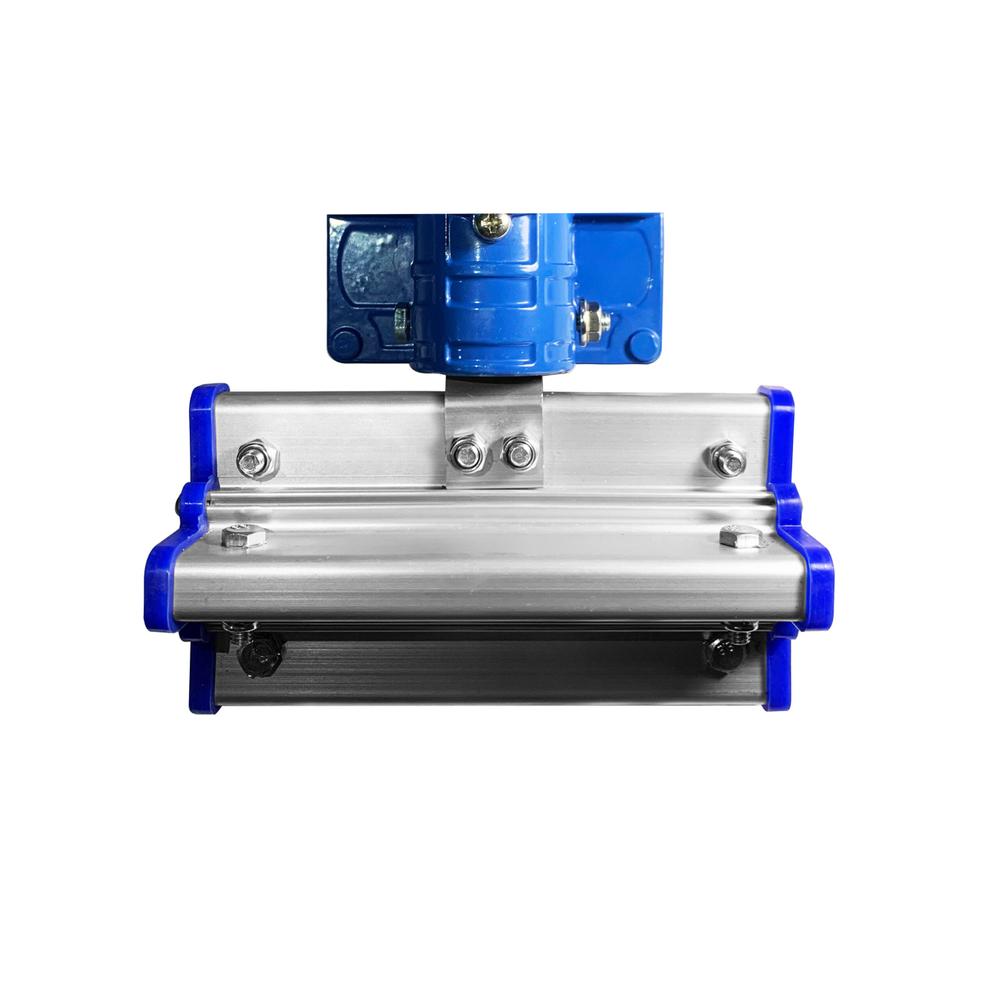

1 * creeper
Electric Film Roller Machine Climbing Device is a tool ,which mainly used in helping the film roller machine to work on the sidewall.
It can climb up as the film roller machine’s moving so that It can improve the efficiency of the film roller machine and decrease the drag force.

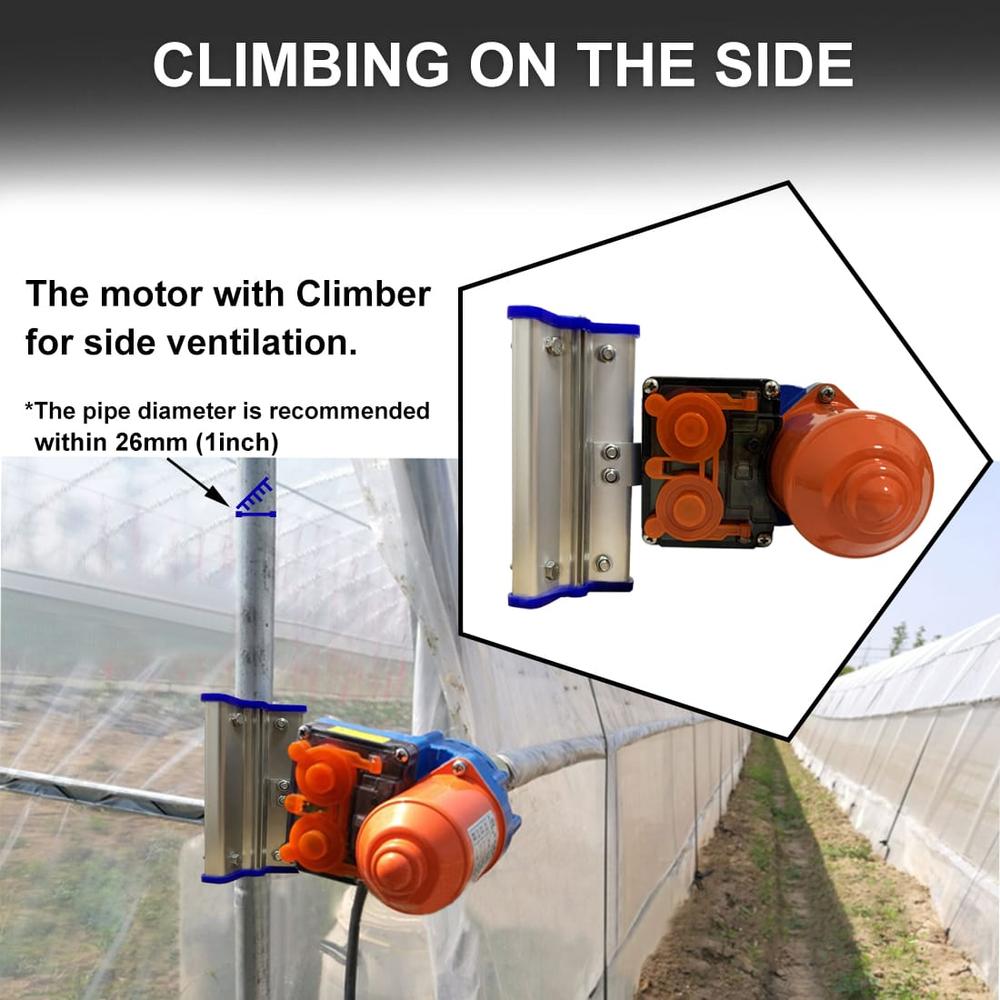

1. If use it for side wall roll film opening (side wall is perpendicular to the ground, no arc), it needs the creeper.
2. If it is used for straight roof roll film opening, it requires the creeper.
1. The roll up motor creeper used together with greenhouse electric film rolling machine.
2. It can climb up or down as the film roller machine is moving up or down.
3. The creeper also called the roll up motor climber.

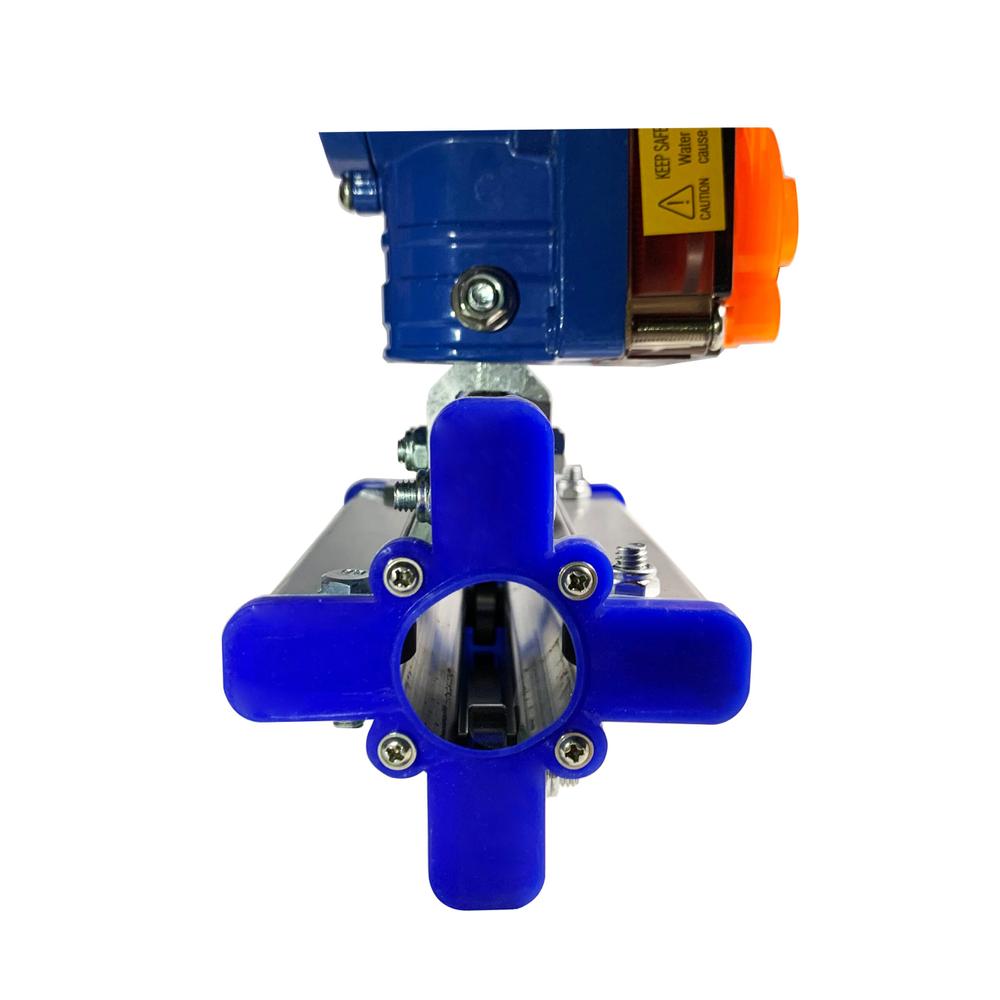

4. The center square opening with rolling bearings will fit with OD1 inch (25mm) electrical conduit tube(DN15 or 3/4″NPS tube).
Material: Aluminum alloy and silicone
Inner Diameter: 1 inch/ 26.5mm
Color: Silver and blue
Diameter Size: Approx. 6.26*2.8 inch
Note the following:
Should be used together with greenhouse electric film rolling machine.
Only used for side rolls of greenhouses.
Suitable for Outer diameter 25mm pipe, (US 3/4″ ID pipe ) .
